RCA Pin Connectors
RCA Pin Connectors for professional use.
Key Features and Benefits
- For audio and video.
- Wide range of RCA Pin Connectors.
- Various body sizes.
- Choice of crimping/soldering.
- Tech Data
- Tech Note
- Downloads
Crimp PlugsCrimp Type
| Model | Suitable Cable | Center Pin | Sleeve | Boot | Die Set | Standard package | |
|---|---|---|---|---|---|---|---|
| Canare | Others | ||||||
| RCAP-C25F | L-2.5CFB | 1855A, 8218, 1417B, 1418B | B11014E | BN7029C | - | TCD-35CA | 20 pcs / 100 pcs |
| RCAP-C25HD | L-2.5CHD | - | B11015E | BN7129 | - | TCD-35CA | |
| RCAP-C3A | L-3C2VS, L-3C2V, V*-3C | - | B11014E | BN7003A | CB24 | TCD-35CA | |
| RCAP-C3GS | GS-6 | - | BN1093 | BN7079 | CB25 | TCD-35D | |
| RCAP-C3F | L-3CFB, V*-3CFB | - | B11015E | BN7003A | CB24 | TCD-35CA | |
| RCAP-C42 | - | 1505F | B11016E | BN7011 | - | TCD-31C | |
| RCAP-C4A | LV-61S | 8241, 8279, RG-59B/U | B11015E | BN7015A | CB25 | TCD-4CA, TCD-451CA | |
| RCAP-C4F | L-4CFB, V*-4CFB | 1505A, 1505ANH, 8212, 8241F, 9167, 9259, 9659 | B11016E | BN7015A | CB25 | TCD-4CA, TCD-451CA | |
| RCAP-C53 | L-4.5CHD | 1694A, 9066, 9116, 9118, 9248 | B11020D | BN7016 | CB26 | TCD-35CA | |
| RCAP-C5A | L-5C2VS, L-5C2V, V*-5C | - | B11016E | BN7016 | CB26 | TCD-35CA | |
| RCAP-C5F | L-5CFB, V*-5CFB | - | B11020D | B75004A | CB26 | TCD-5CF, TCD-55FA | |
| RCAP-C77 | LV-77S | 8281F | B11016E | B75004A | CB26 | TCD-5CF, TCD-55FA | |
Key Features and Benefits
- Canare crimp design ensures quick and reliable installation.
- The crimp tool for the RCAP-C can be used for the Canare crimp BNC plugs as well, thus saving on extra equipment.
- Note1: Be sure to use Canare Crimp Tool.
Solder PlugsSolder Type
| Model | Description | Standard ackage |
|---|---|---|
| F-09 | Plug | 10 pcs |
| F-10 | Plug (long sleeve) |
Key Features and Benefits
- Robust metal shell
- Comfortable grip
- Cable OD up to 6.0 mm.

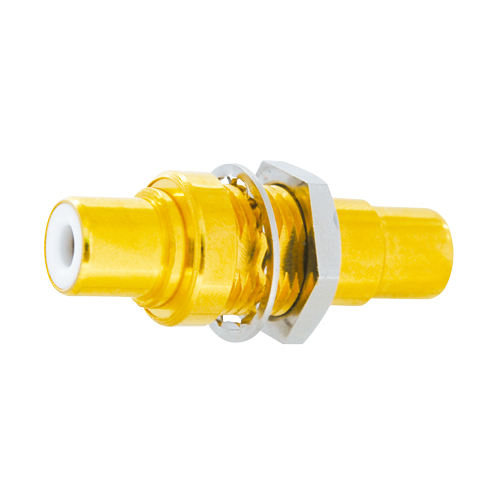

Standoff Receptacle
| Model | Description | Standard package |
|---|---|---|
| RJ-JR | Jack to Jack | 20 pcs by insulation color |
Key Features and Benefits
- Insulation color is available in 5 colors (red, green, blue, yellow, white).
- VSWR 1.2 @ 100 MHz
Flush-mount Receptacles
| Model | Description | Flange Type | Standard package |
|---|---|---|---|
| RJ-RU | RCA - Solder | ITT XLR-F77 | 20 pcs by insulation color |
| RJ-RUD | Neutrik D | ||
| RJ-RUDB | Neutrik D (Black) | ||
| RJ-JRU | RCA - RCA | ITT XLR-F77 | |
| RJ-JRUD | Neutrik D | ||
| RJ-JRUDB | Neutrik D (Black) | ||
| RJ-BCJRU | RCA - BNC | ITT XLR-F77 | |
| RJ-BCJRUD | Neutrik D | ||
| RJ-BCJRUDB | Neutrik D (Black) |
Key Features and Benefits
- Three types of flanges are available.
- Insulation color is available in 5 colors (red, green, blue, yellow, white).
- VSWR 1.2 @ 100 MHz
< Panel Hole Dimensions >
| RJ-JR (*) | ITT XLR-F77 Flange | Neutrik D Flange |
|---|---|---|
 |
 |
 |
- (*) RJ-JR accepts insulation bushing IU-7/16; in this case, panel hole for IU-7/16 should be adopted
Technical Note
Voltage Standing - wave Ratio (VSWR) and Return Loss
Terminating the receiving end of a limited length coaxial cable using a resistance value not equal to its characteristic impedance creates a reflected wave that returns back down the cable to the sending end. The result is interference developing between the travelling wave and the return wave which results in a standing wave that causes voltage levels to fluctuate. The degree to which terminating resistance matches the characteristic impedance is indicated using the VSWR or voltage standing-wave ratio standard shown in Fig. 1. Going hand in hand with the VSWR ratio is the return loss factor which measures the size of the reflected wave current in relation to the travelling wave current. (See Fig. 2)
Fig. 1 Voltage Distribution Over Coaxial Cable
| VSWR | Return Loss (dB) |
|---|---|
| 2 | 9.54 |
| 1.5 | 13.98 |
| 1.2 | 20.83 |
| 1.1 | 26.44 |
| 1.05 | 32.26 |
| 1.02 | 40.09 |
| 1.01 | 46.06 |
Fig. 2 VSWR to Return Loss Conversion Table
