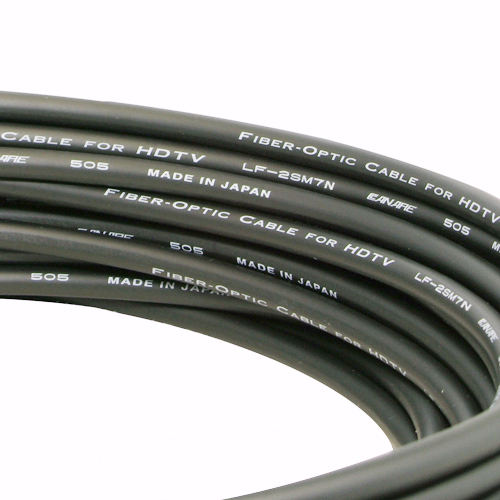

LF-2SM7N -
Cross Section for LF-2SM7N
Slim Hybrid Fiber-optic Camera Cable
Slim and lightweight HFO cable for studio and broadcast use.
- Note:
- Printing design differs from photograph.
- TECH DATA
- DOWNLOAD
Slim Hybrid Fiber-optic Camera Cable
| Type | Model | Sales Units (m) | Nom. O.D. (m) | Weight kg/100m | Outer Jacket | Overall Shield | Tension Tolerance (N) | Strength Member O.D. (mm) | Min. Bend Radius | Temp. Range (deg C) | Channel Unit | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiber | Aux. (Power) | Signal (Control) | |||||||||||
 BLK
|
LF-2SM7N | Call | 7.1 | 7.3 | Abrasion- resistance PVC |
8/24/0.10TA 91% |
300 | 1.4 | 6 x Nom. O.D |
-40 to +75 |
2 x SM 9/125 (low-water-peak) Unit O.D. 0.9 mm |
2 x 20 AWG 21 / 0.18TA Unit O.D. 1.7 mm |
2 x 25 AWG 7 / 0.18A Unit O.D. 1.2 mm |
Key Features and Benefits
- O.D. 7mm of slim profile and approx. 40% lighter than LF-2SM9N.
- Best fit for mobile applications.
- The power transmission distance is approx. twice as long as the previous model LF-2SM7R
- Note:
- The power transmission distance is shorter than typical HFO camera cables (approx. 50% of LF-2SM9N).
Please contact us for more information. - Note:
- Multichannel cables, LF-2SM7N-3P and LF-2SM7N-5P, are also available.
