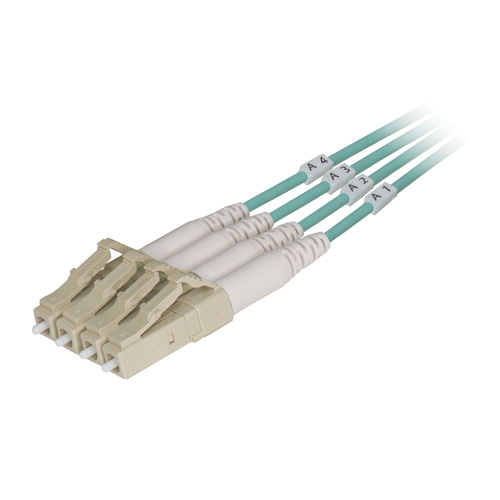

4FO-M3-xxx-S -

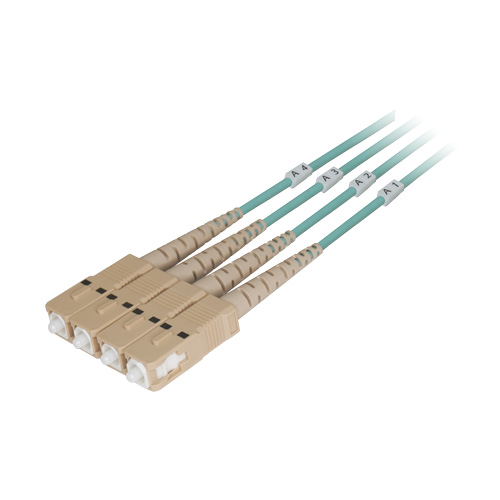

4FO-M3-xxx-LS
OM3 Multi-mode Fiber Optic Fan-out Cable
OM3 Multi-mode Fiber Optic Fan-out Cable for 4-core fiber ribbon.
- TECH DATA
OM3 Multi-mode Fiber Optic Fan-out Cable
| Type | Model | Length (m) |
|---|---|---|
SC - Open Aqua
|
4FO-M3-015-SS | 1.5 |
| 4FO-M3-03-SS | 3 | |
| 4FO-M3-05-SS | 5 | |
LC - Open Aqua
|
4FO-M3-015-LS | 1.5 |
| 4FO-M3-03-LS | 3 | |
| 4FO-M3-05-LS | 5 |
Key Features and Benefits
- 4-core Multimode 50/125 OM3 Ribbon Fiber
- Typically used in 10 Gigabit Ethernet
- Insertion loss: 0.3 dB max.
- Return loss: 30 dB max. (PC)
- Ribbon fiber cable: 2.1 x 3.5 mm outer dimensions
- Fan-out unit: 2 mm outer diameter, 500 mm length
- Fan-out tubing: 8 mm outer diameter
- UL type OFNR
