Two-Conductor Shielded Cables (Single)
Two-Conductor Shielded Cables (Single)

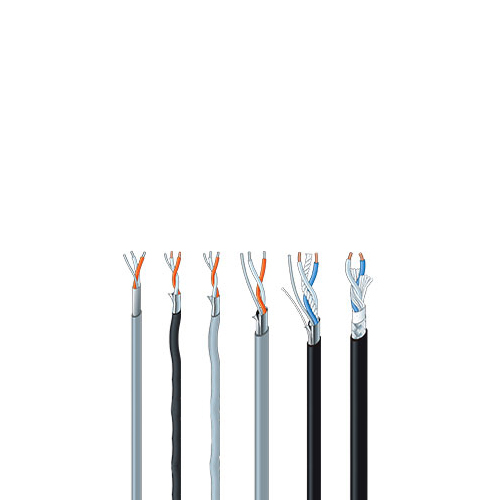

2-conductor microphone cable for general purpose audio applications.
Key Features and Benefits
- 2-conductor style construction.
- Flexible and Slim.
- Ideal for internal rack wiring.
- Cross Linked PE Insulation.
- Tech Data
- Downloads
Aluminum Foil Shield
| Type | Model | Sales units | Nom. O.D. | Weight | Composition | Electrical characteristics | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No.of cond. | Cross sec. area (AWG) and cond. comp. |
Twist pitch | Cond. DCR | Shield DCR | Nom. cap.* | Nom. cap.** | |||||
| m | mm | kg/100m | mm2/(AWG) Q’ty/mm |
mm | ohm/100m | ohm/100m | pF/m | pF/m | |||
 Jacket colors GRY BLK |
L-2B2AT | 200 500 |
3.2 | 1.3 | 2 | 0.18(25) 16/0.12A |
25 | 10.5 | - | 66 | 120 |
 Jacket color GRY |
L-2B2AL | 200 | 3.2 | 1.2 | 2 | 0.18(25) 7/0.18TA Overall tin coated |
20 | 11.3 | - | - | - |
 Jacket colors GRY BLK SEPIA |
L-2E5AT | 200 | 5.0 | 4.0 | 2 | 0.31(23) 12/0.18A |
30 | 6.2 | - | 68 | 140 |
 Jacket color GRY |
L-2E5AL | 200 500 |
5.0 | 3.7 | 2 | 0.29(23) 7/0.23TA Overall tin coated |
30 | 6.8 | - | - | - |
- Insulation: Cross-linked PE (polyethylene for L-2E5AL and L-2B2AL), Jacket: PVC, Dielectric strength: 500V AC/min.
- *Capacitance between conductors **Capacitance between conductor and shield.
Key Features and Benefits / L-2B2AT, L-2E5AT
- Ideal for internal rack wiring.
- Drain wire included.
- The L-2E5AT contains the Tetoron cable filler reinforcement material. <Fig. 1>
Key Features and Benefits / L-2B2AL, L-2E5AL
- Cables for connecting devices with which wrapping tools can be used.
- Drain wire included.

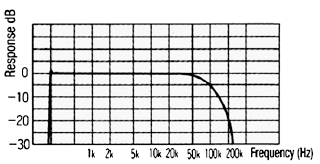

Fig. 2 Frequency Characteristics for L-2B2AT (100m)
Fig. 1 Pull Load and Stretch
Ratio for Cable
Braided Shield
| Type | Model | Sales units | Nom. O.D. | Weight | Composition | Electrical characteristics | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No.of cond. | Cross sec. area (AWG) and cond. comp. |
Twist pitch | Shield coverage (braid) |
Cond. DCR | Shield DCR | Nom. cap.* | Nom. cap.** | |||||
| m | mm | kg/100m | mm2/(AWG) Q’ty/mm |
mm | % | ohm/100m | ohm/100m | pF/m | pF/m | |||
 Jacket colors for L-2T2S: BLKGRYREDORNYELBLUL-2E5: BLK |
L-2T2S | 100 200 |
6.0 | 4.6 | 2 | 0.30(23) 60/0.08A |
20 | 94% | 6.5 | 3.1 | 60 | 106 |
| L-2E5 | 200 | 4.6 | 3.0 | 2 | 0.15(26) 30/0.08A |
18 | 97% | 12.7 | 2.2 | 63 | 117 | |
- Insulation: Cross-linked PE, Jacket: PVC, Dielectric strength: 500V AC/min.
- *Capacitance between conductors **Capacitance between conductor and shield.
Key Features and Benefits / L-2T2S, L-2E5
- Braid coverage of 94% and above provides dense shielding that blocks out electromagnetic noise.
- L-2T2S consists of 60 ultra-fine 0.08 mm strands (30 for L-2E5) in a stranded format that offers excellent durability.
- Highly pliable and durable PVC used for jacket. (Brittle temp. -49°C)
Spiral Shield
| Type | Model | Sales units | Nom. O.D. | Weight | Composition | Electrical characteristics | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No.of cond. | Cross sec. area (AWG) and cond. comp. |
Twist pitch | Shield coverage (braid) |
Cond. DCR | Shield DCR | Nom. cap.* | Nom. cap.** | |||||
| m | mm | kg/100m | mm2/(AWG) Q’ty/mm |
mm | % | ohm/100m | ohm/100m | pF/m | pF/m | |||
 Jacket color
BLK |
MS202 | 200 | 2.8 | 1.4 | 2 | 0.18(25) 1/0.18TA + 30/0.08TA |
25 | 91% (spiral) |
11.3 | 3.2 | 74 | 145 |
 Jacket color
GRY |
MS203 | 200 | 3.5 | 2.1 | 2 | 0.31(23) 12/0.18TA |
30 | 91% (spiral) |
6.5 | 2.3 | - | - |
- Insulation: Cross-linked PE, Jacket: PVC, Dielectric strength: 500V AC/min.
- *Capacitance between conductors **Capacitance between conductor and shield.
Key Features and Benefits / MS202
- Ideal for analog audio internal rack wiring.
- Composite conductors with 1 of 0.18 mm and 30 of 0.08 mm strands.
- Drain wire included.
Key Features and Benefits / MS203
- Ideal for internal rack wiring.
- Drain wire included.
